- Hign-concerned Chemical: none
- Is Smart Device: no
- Origin: Mainland China
- Certification: CE
- Model Number: wood engraving machine
- Condition: New
- CNC or Not: Normal

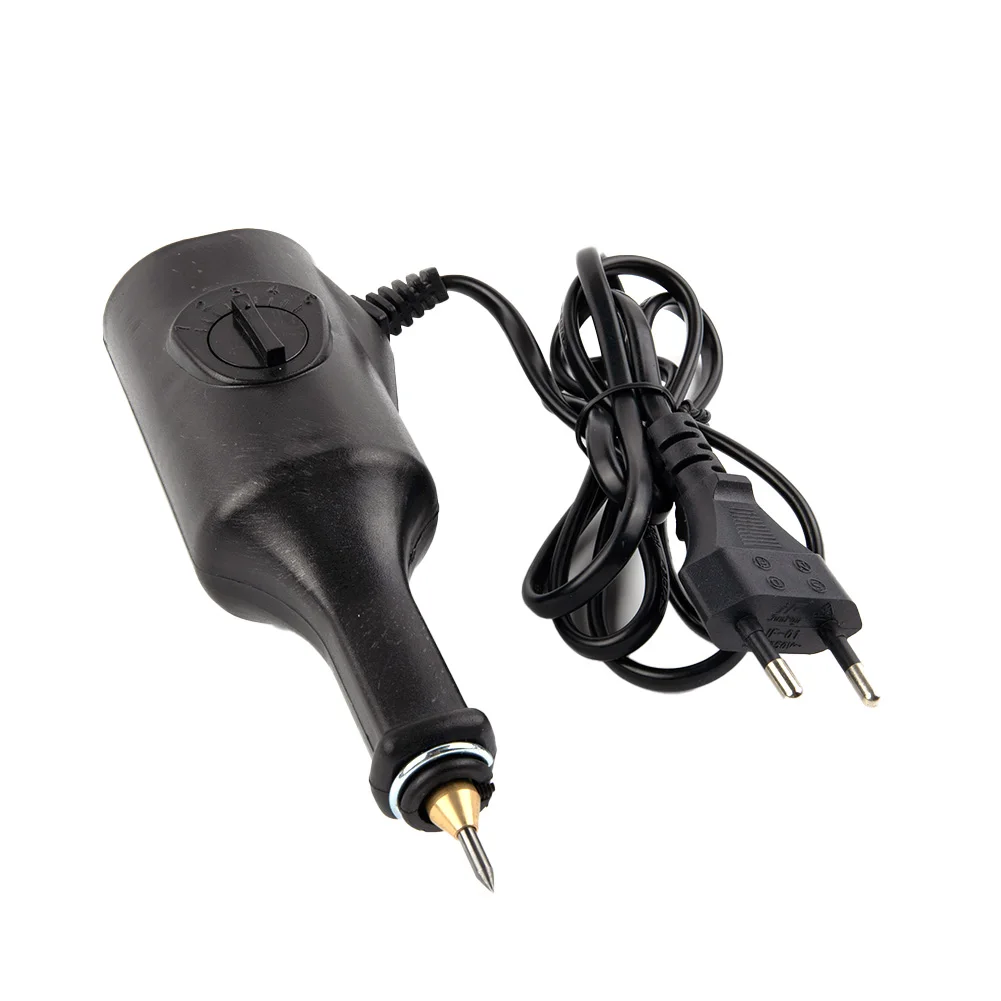

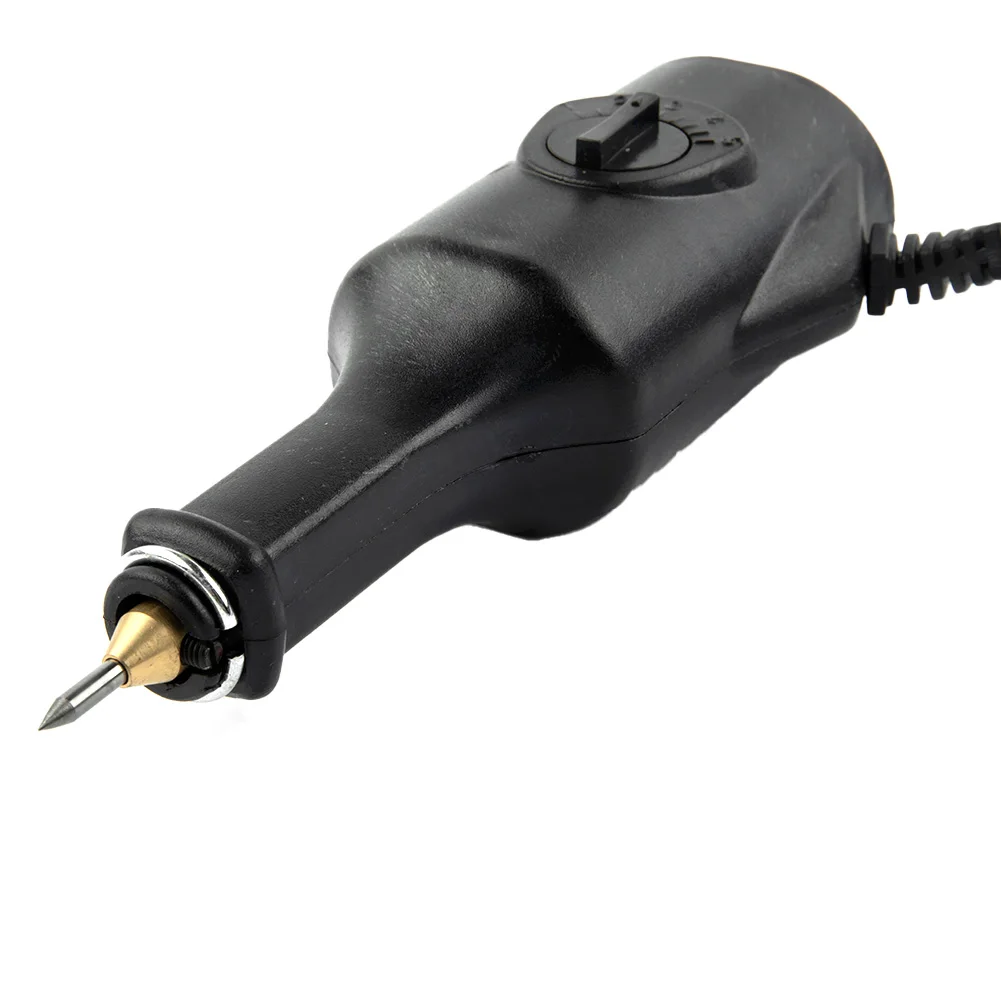

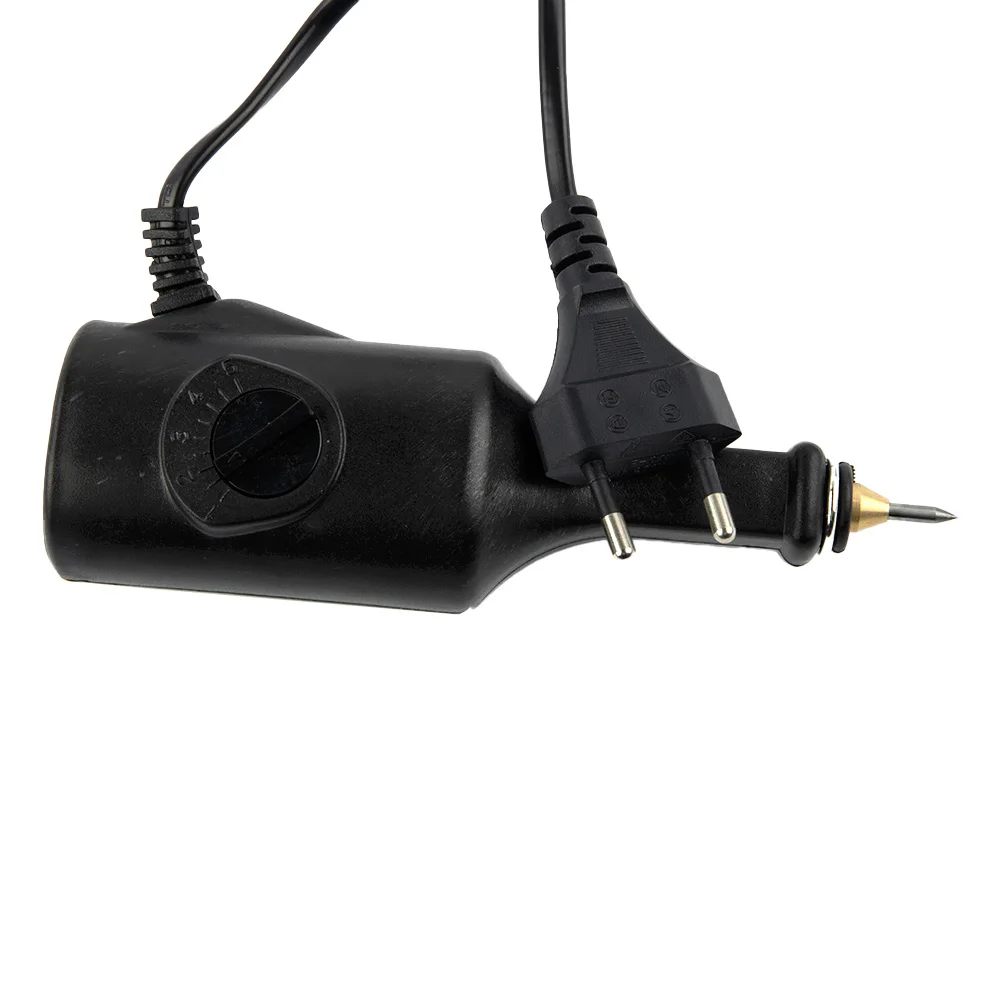

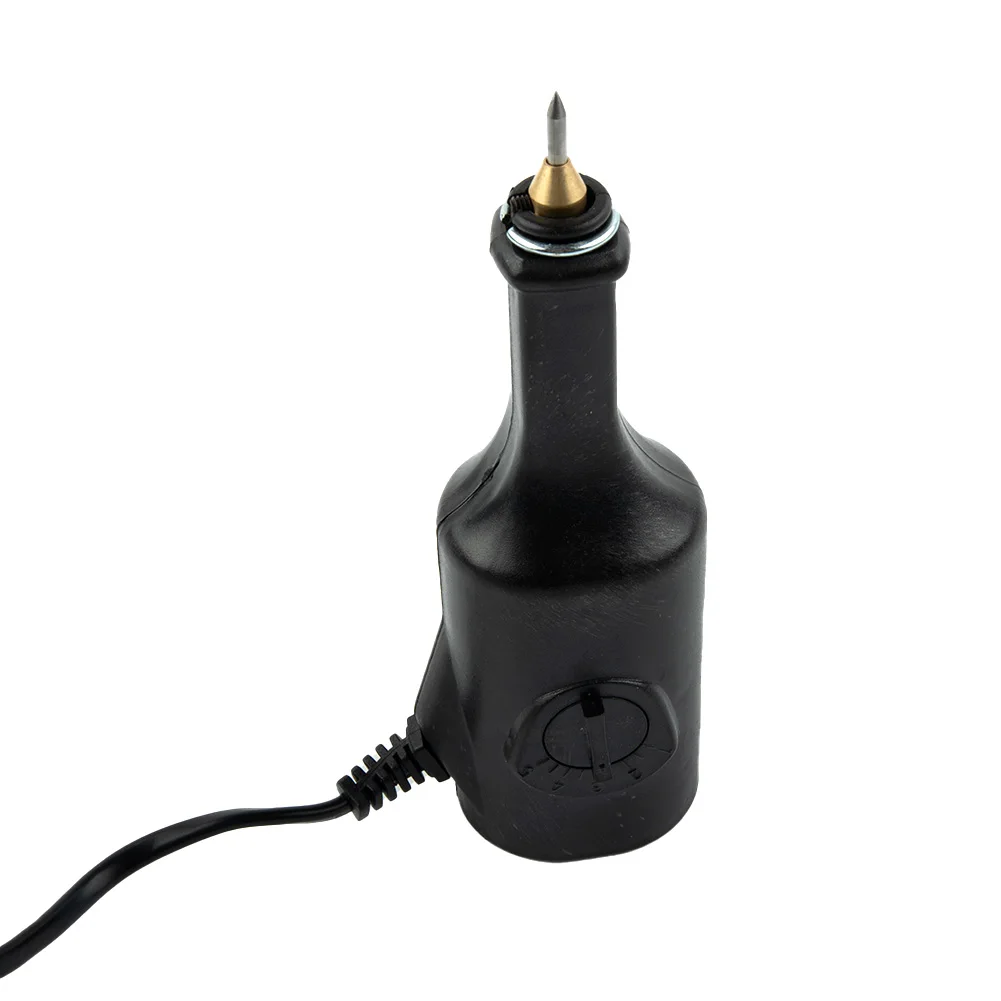

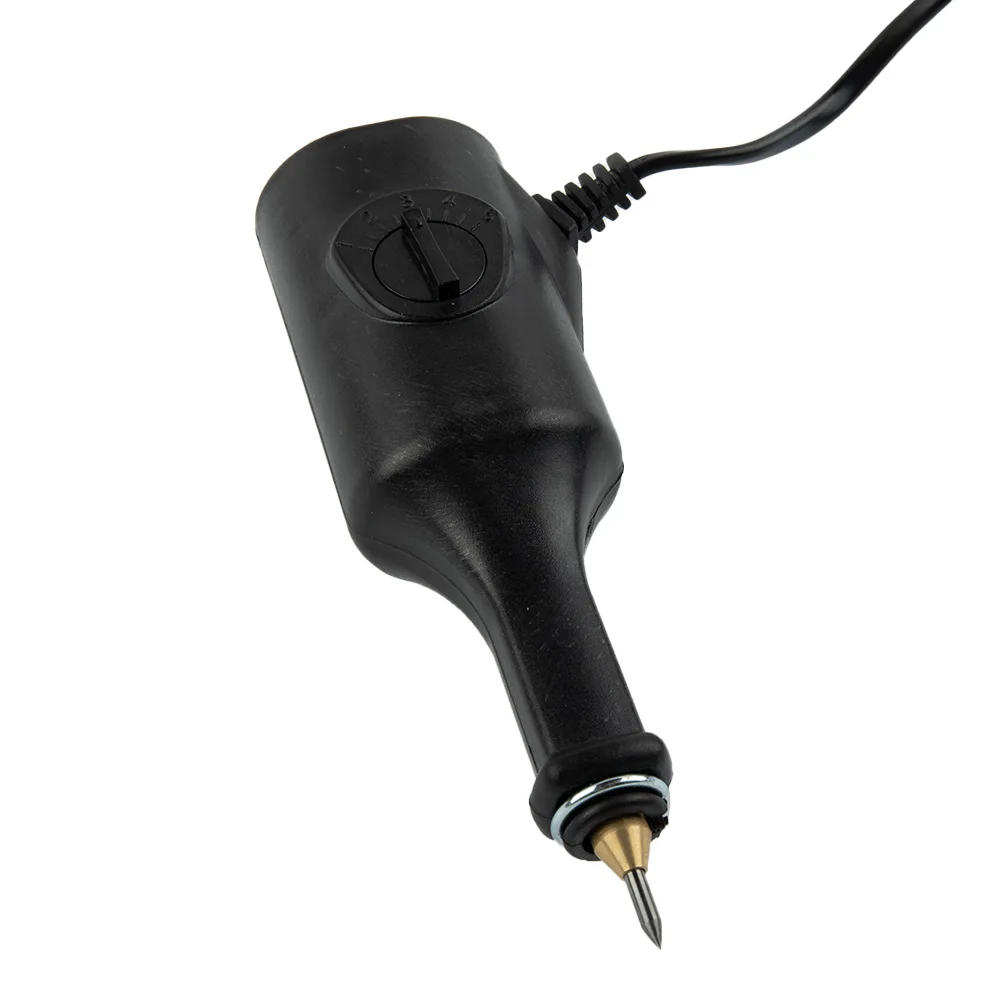

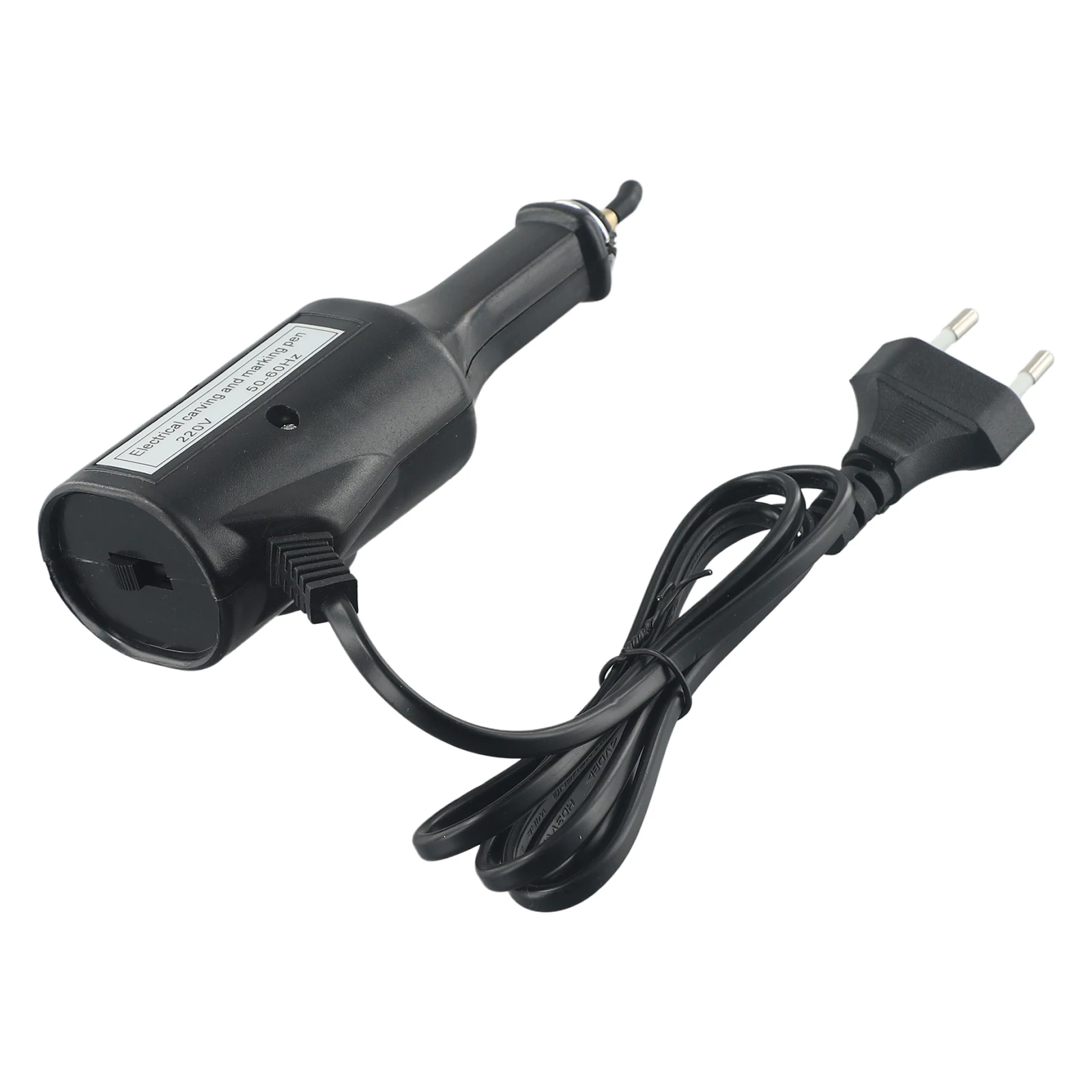

- Product name: Electric Engraver
- Material: Metal
- Color: Black

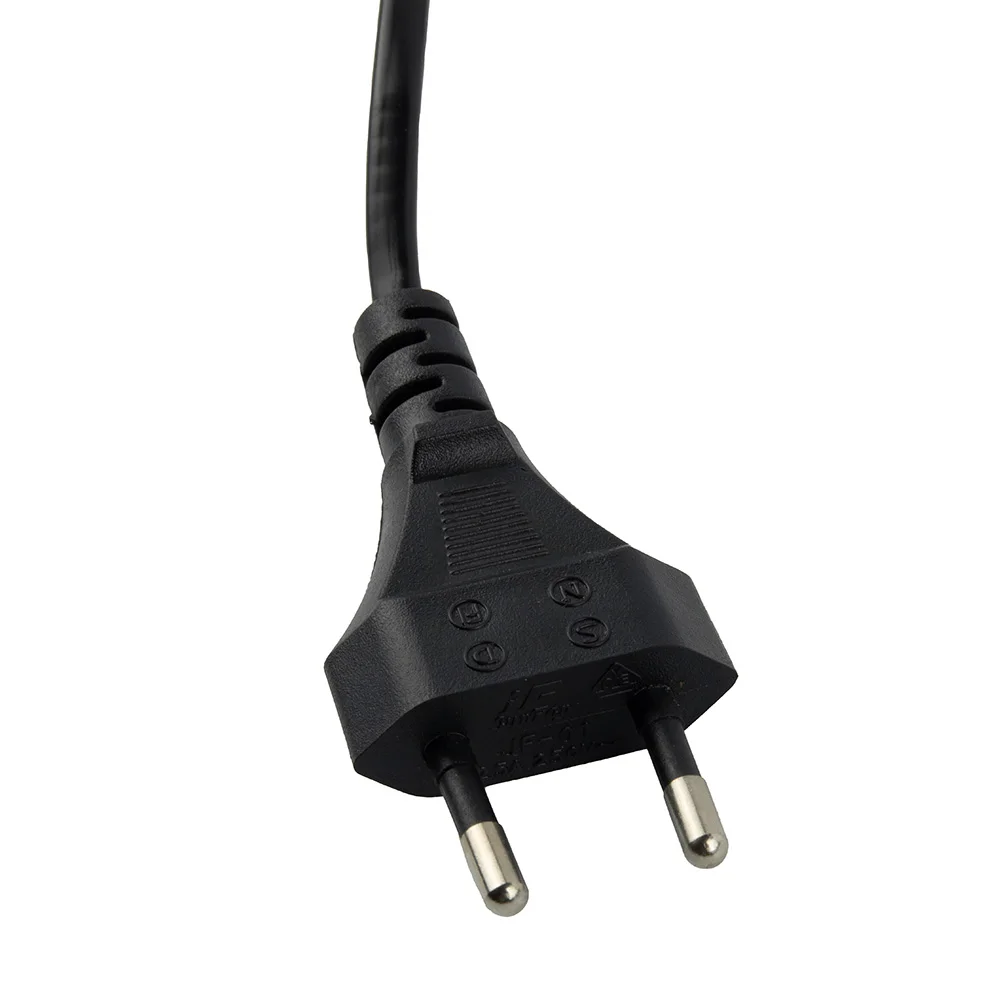

- Plug: European standard
- Volt/Power: 220V 25W
- Supply Voltage: 220V
- Max Power: 25W
Features:
*Works great on metals, china, glass, plastic and other hard material.
*Using the typical alternating current of frequency cycle, the equipment generates high-speed vibration to drive the high-hardness metal bit to engrave.
*The speed can be adjusted to meet the requirements of different materials.
*Pen design, hold and engrave just like writing, easy to operation.
*Mechanical principle: The forced vibration (up and down vibration) is generated by the periodic characteristics of AC frequency to drive the pen tip to work, so there will be certain tolerable noise during the work.
Specifications:
Product name: Electric Engraver
Material: Metal
Color: Black
Plug: European standard
Volt/Power: 220V 25W
Supply Voltage: 220V
Max. Power: 25W
Output Current: 0.1A
Pen Bit: 3mm
Engraving Depth: 0.1-0.5mm
Repeat Engraving Depth: 0.3-0.8mm
Suitable for: Carving
Quantity: 1 Pc
Instructions:
1. When in use, hold the body with your hand, tilt it at an angle (about 45 degrees) like writing with a pen, and place your hand on the table, do not press down hard when writing, the writing speed is slightly slower than usual. Move the carving on the real object.
2. Leave a trace where it crosses.
3. According to different materials, adjust the gears reasonably.
4. Master its performance through repeated engraving to meet the font size and depth requirements of different materials.
Note:
1. Continuous work should not exceed 20 minutes to avoid damage to the coil. Intermittent use can ensure the life of the body.
2. When the housing is heated, it should be used after cooling.
3. Turn off the power supply when not in use!
Package Contents:
1 Pc Electric Engraver
Note:
1.Transition: 1cm=10mm=0.39inch.
2. The real color of the item may be slightly different from the pictures shown on website caused by many factors such as brightness of your monitor and light brightness.
3. Please allow slight manual measurement deviation for the data.
